The Phaetus EndCoat™ nozzle for Creality is a nozzle with a fully integrated design that offers exceptional wear resistance and long service life thanks to the special, patented EndCoat technology.

The nozzle made of hardened steel has an enlarged nozzle chamber, through which a maximum flow rate of up to 30 mm³/s and high speeds of up to 600 mm/s can be achieved.

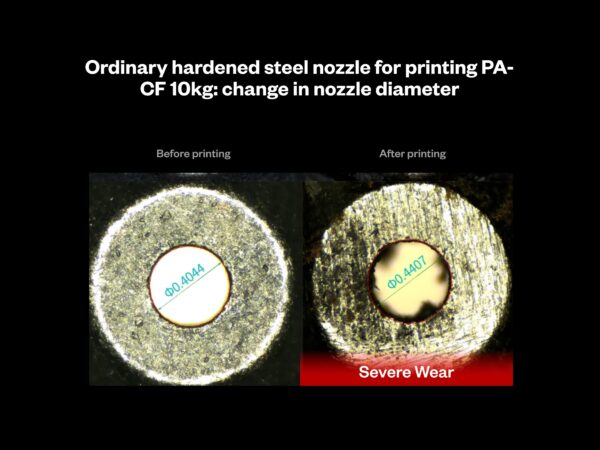

The EndCoat™ nozzle has a coating hardness of HV3300, which gives it up to 2.5 times longer service life than a conventional hardened steel nozzle.

Materials at a glance:

Nozzle tip made of hardened steel with EndCoat coating,
Titanium alloy heatbreak,
Heating zone made of copper alloy.

► The nozzle supports standard materials such as PLA, ABS, PETG, TPU, but is also suitable for printing composite materials that are used in industrial contexts (e.g. CF, GF, steel, wood, etc.).

Weight	0.05 kg
Dimensions	10 × 2 × 2 cm
Option	1.75/0.4mm
Brand	Creality 3D, Phaetus
Material	Hardened Steel
